Cable Management System

Cable Trays

Perforated Cable Trays (HDGI/GI/SS)

TECHNICAL SPECIFICATIONS

  • Manufactured from Hot Dip Galvanized Iron (HDGI), Pre-Galvanized Iron (GI) and Stainless Steel (SS 304 / SS 316) material.
  • Standard tray widths available from 50 mm to 1200 mm.
  • Standard side rail heights available from 25 mm to 150 mm.
  • Thickness available from 1.2 mm to 3.0 mm.
  • Standard tray lengths available in 2.5 meter and 3 meter.
  • Hot dip galvanized coating thickness from 80 to 120 microns.
  • Perforated design provides proper cable ventilation and heat dissipation.
  • Suitable for industrial, commercial, infrastructure and power plant applications.

Ladder Type Cable Tray (HDGI / GI / SS)

TECHNICAL SPECIFICATIONS

  • Manufactured from HDGI, GI and Stainless Steel (SS 304 / SS 316) material.
  • Standard tray widths available from 150 mm to 1200 mm.
  • Side rail heights available from 50 mm to 150 mm.
  • Thickness available from 2.0 mm to 3.0 mm.
  • Standard ladder tray lengths available in 2.5 meter and 3 meter.
  • Hot dip galvanized coating thickness from 80 to 120 microns.
  • Heavy duty ladder design suitable for high load carrying capacity.
  • Excellent ventilation reduces cable heating and improves cable life.

Cable Tray Accessories

Bends (Horizontal / Vertical)

TECHNICAL SPECIFICATIONS

  • Manufactured from HDGI, GI and Stainless Steel (SS 304 / SS 316) material.
  • Available in Horizontal Bend, Vertical Inside Bend and Vertical Outside Bend configurations.
  • Standard bend angles available in 30°, 45°, 60° and 90°.
  • Suitable for tray widths from 50 mm to 1200 mm.
  • Thickness available from 1.2 mm to 3.0 mm matching cable tray specifications.
  • Hot dip galvanized coating thickness from 80 to 120 microns.
  • Designed for smooth cable routing without cable damage.
  • Suitable for industrial, commercial and infrastructure cable management systems.

Tee / Cross Junctions

TECHNICAL SPECIFICATIONS

  • Manufactured from HDGI, GI and Stainless Steel material.
  • Available in Equal Tee, Unequal Tee and Cross Junction configurations.
  • Suitable for tray widths from 50 mm to 1200 mm.
  • Thickness available from 1.2 mm to 3.0 mm.
  • Hot dip galvanized coating thickness from 80 to 120 microns.
  • Precision fabricated for easy tray connection and alignment.
  • Provides efficient cable branching and routing arrangement.
  • Suitable for power, control and instrumentation cable systems.

Reducers

TECHNICAL SPECIFICATIONS

  • Manufactured from HDGI, GI and Stainless Steel material.
  • Available in Left Reducer, Right Reducer and Center Reducer types.
  • Suitable for width reduction combinations from 1200 mm to 50 mm.
  • Thickness available from 1.2 mm to 3.0 mm.
  • Hot dip galvanized coating thickness from 80 to 120 microns.
  • Smooth transition design prevents cable bending stress.
  • Suitable for industrial and commercial cable tray systems.

Coupler Plates

TECHNICAL SPECIFICATIONS

  • Manufactured from GI, HDGI and Stainless Steel material.
  • Used for joining straight cable tray lengths and accessories.
  • Available in multiple dimensions suitable for various tray sizes.
  • Thickness available from 2 mm to 6 mm.
  • Hot dip galvanized coating thickness from 70 to 100 microns.
  • Supplied with nut bolts and fastening hardware options.
  • Provides strong mechanical and electrical continuity connection.
  • Suitable for perforated and ladder type cable tray systems.

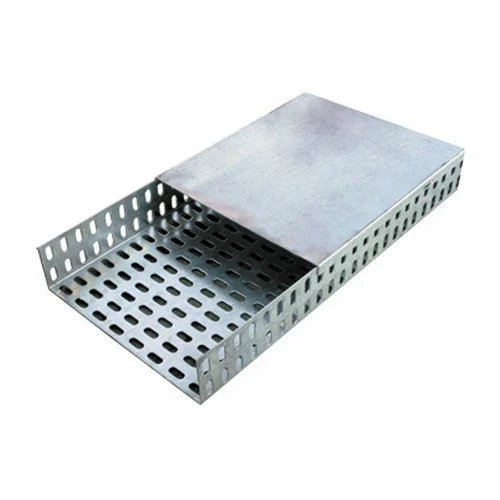

Tray Covers

TECHNICAL SPECIFICATIONS

  • Manufactured from HDGI, GI and Stainless Steel material.
  • Available in plain, flanged and clamp type designs.
  • Suitable for tray widths from 50 mm to 1200 mm.
  • Thickness available from 1.0 mm to 2.0 mm
  • Hot dip galvanized coating thickness from 80 to 120 microns.
  • Protects cables from dust, moisture and external damage.
  • Easy removable design for cable inspection and maintenance.
  • Suitable for indoor and outdoor cable tray installations.

Cable Support Systems

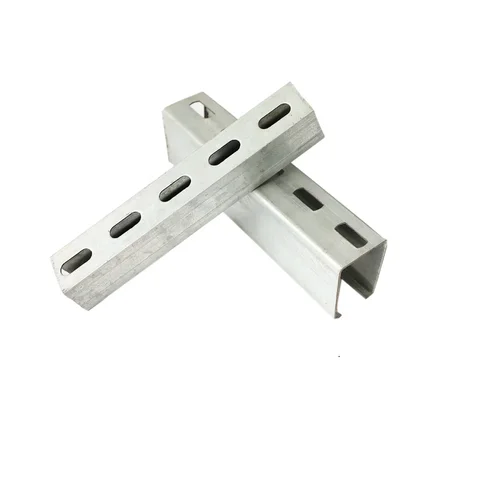

C Channel (Slotted / Plain)

TECHNICAL SPECIFICATIONS

  • Manufactured from high quality Mild Steel (MS), Pre-Galvanized or Hot Dip Galvanized steel.
  • Available in Slotted and Plain channel configurations.
  • Standard sizes available in 41x21 mm, 41x41 mm and 61x41 mm.
  • Thickness available from 1.6 mm to 3.0 mm.
  • Standard channel lengths available in 3 meter and 6 meter.
  • Hot dip galvanized coating thickness from 70 to 100 microns.
  • High load bearing capacity suitable for cable tray and pipe support systems.
  • Suitable for industrial, commercial and infrastructure installations.

Strut Channels (Pre-Galvanized / HDG)

TECHNICAL SPECIFICATIONS

  • Manufactured from Pre-Galvanized steel and Hot Dip Galvanized steel material.
  • Precision formed channel design for modular support systems.
  • Standard sizes available in 41x21 mm and 41x41 mm.
  • Thickness available from 1.6 mm to 3.0 mm.
  • Standard lengths available in 3 meter and 6 meter.
  • Hot dip galvanized coating thickness from 70 to 110 microns.
  • Compatible with spring nuts, clamps and support accessories.
  • Suitable for cable trays, conduits, HVAC and piping support applications.

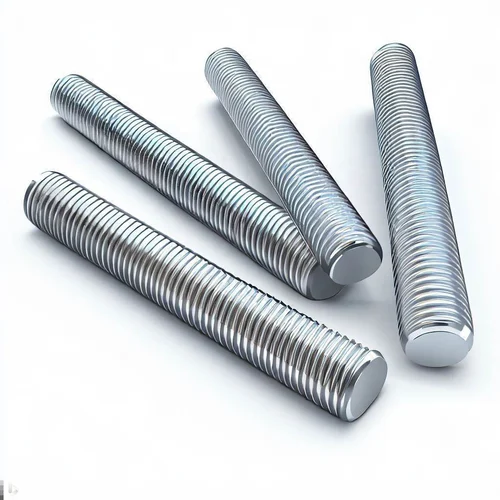

GI/MS Threaded Rods

TECHNICAL SPECIFICATIONS

  • Manufactured from high tensile Mild Steel (MS) and Galvanized Iron (GI).
  • Standard diameters available from M6 to M24.
  • Standard lengths available from 1 meter to 3 meter.
  • Available in fully threaded and partial threaded configurations.
  • Hot dip galvanized coating thickness from 40 to 80 microns.
  • High tensile strength suitable for suspended support systems.
  • Compatible with channel supports, cable trays and ceiling mounting systems.
  • Suitable for industrial, electrical and mechanical installations.

Cable Glands & Termination

Brass Cable Glands (Single / Double Compression)

TECHNICAL SPECIFICATIONS

  • Manufactured from high quality brass material.
  • Available in Single Compression and Double Compression types.
  • Suitable for armoured and unarmoured cable applications.
  • Standard sizes available from 20 mm to 90 mm.
  • Nickel plated finish available for corrosion resistance.
  • IP66 / IP67 protection rating available.
  • Suitable for indoor and outdoor industrial installations.
  • Designed for secure cable sealing and mechanical retention.

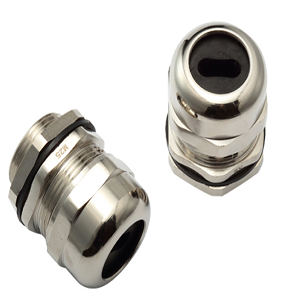

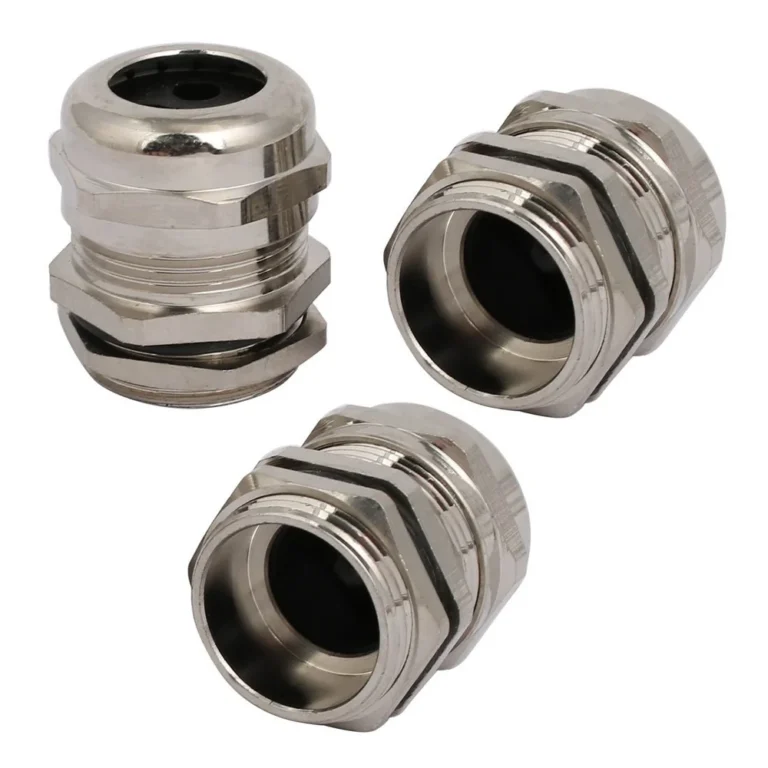

Nickel Plated Cable Glands

TECHNICAL SPECIFICATIONS

  • Manufactured from brass with nickel plated corrosion resistant finish.
  • Excellent resistance against moisture, chemicals and harsh environments.
  • Available in metric, ET and PG thread standards.
  • Standard gland sizes available from M16 to M100.
  • Suitable for armoured and unarmoured cables.
  • High ingress protection up to IP68 rating.
  • Suitable for industrial panels, hazardous areas and outdoor installations.
  • Long service life with superior surface protection.

SS Cable Glands

TECHNICAL SPECIFICATIONS

  • Manufactured from Stainless Steel SS304 and SS316 grade material.
  • High corrosion resistance suitable for marine and chemical industries.
  • Available in Single Compression and Double Compression designs.
  • Standard sizes available from M20 to M100.
  • Suitable for hazardous and high temperature environments.
  • IP66 / IP67 / IP68 protection ratings available.
  • Heavy duty construction for industrial cable termination applications.
  • Suitable for pharmaceutical, offshore and petrochemical industries.

PVC Cable Glands

TECHNICAL SPECIFICATIONS

  • Manufactured from high quality flame retardant PVC material.
  • Lightweight and corrosion resistant construction.
  • Standard sizes available from PG7 to PG63.
  • Suitable for flexible and unarmoured cable applications.
  • Provides secure cable grip and strain relief.
  • Weather resistant and suitable for indoor applications.
  • Available in multiple colors and thread configurations.
  • Economical solution for electrical panel and junction box applications.

Cable Lugs (Copper / Aluminium)

TECHNICAL SPECIFICATIONS

  • Manufactured from high conductivity Copper and Aluminium material.
  • Standard sizes available from 1.5 Sq.mm to 1000 Sq.mm.
  • Available in long barrel and short barrel configurations.
  • Tinned copper finish available for enhanced corrosion resistance.
  • Suitable for crimping and soldering applications.
  • Precision manufactured for secure cable termination.
  • Suitable for power cables, earthing and panel connections.
  • Designed for low resistance and high current carrying performance.

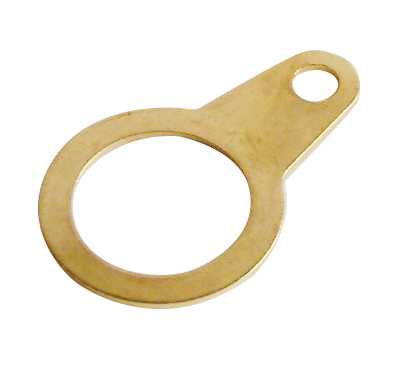

Earthing Tags

TECHNICAL SPECIFICATIONS

  • Manufactured from Brass, Copper or GI material.
  • Used for proper earthing continuity with cable glands.
  • Standard sizes available suitable for gland sizes from 20 mm to 90 mm.
  • Corrosion resistant finish for long operational life.
  • Easy installation with cable gland assemblies.
  • Provides reliable grounding and bonding connection.
  • Suitable for industrial panels and electrical installations.
  • Available in standard and customized hole configurations.

 Shrouds

TECHNICAL SPECIFICATIONS

  • Manufactured from high quality PVC material.
  • Designed for insulating and protecting cable gland terminations.
  • Available for Single Compression and Double Compression glands.
  • Standard sizes available from 20 mm to 90 mm.
  • Standard sizes available from 20 mm to 90 mm.
  • Flexible and easy to install design.
  • Available in multiple colors for cable identification.
  • Suitable for indoor and outdoor cable termination applications.

Cable Routing & Protection

Flexible Conduits (PVC / Metal)

TECHNICAL SPECIFICATIONS

  • Manufactured from high quality PVC, Galvanized Steel or Stainless Steel material.
  • Available in PVC coated, galvanized steel and flexible metallic conduit types.
  • Standard conduit sizes available from 16 mm to 100 mm diameter.
  • Standard roll lengths available from 25 meter to 50 meter.
  • High flexibility suitable for vibration and dynamic movement applications.
  • Flame retardant and corrosion resistant construction.
  • Suitable for cable protection in industrial, commercial and machinery installations.
  • Available with accessories such as glands, adaptors and conduit fittings.

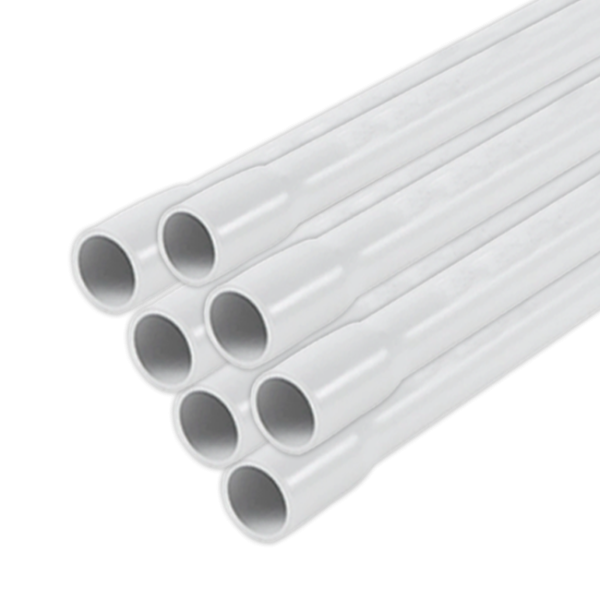

Rigid Conduits and Accessories (GI / PVC)

TECHNICAL SPECIFICATIONS

  • Manufactured from Galvanized Iron (GI) and heavy duty PVC material.
  • Standard conduit sizes available from 16 mm to 100 mm diameter.
  • Standard conduit lengths available in 3 meter and 4 meter.
  • Hot dip galvanized coating thickness from 40 to 80 microns for GI conduits.
  • High mechanical strength suitable for exposed and concealed wiring applications.
  • Available with bends, couplers, junction boxes, saddles and inspection fittings.
  • Corrosion resistant and weatherproof construction.
  • Suitable for industrial, commercial, infrastructure and electrical installations.

Identification & Dressing

Cable Ties (Nylon / SS)

TECHNICAL SPECIFICATIONS

  • Manufactured from Nylon 6/6 and Stainless Steel (SS304 / SS316) material.
  • Standard lengths available from 100 mm to 1200 mm.
  • Width sizes available from 2.5 mm to 12 mm.
  • High tensile strength suitable for cable bundling applications.
  • UV resistant and flame retardant variants available.
  • Stainless Steel cable ties suitable for high temperature and corrosive environments.
  • Easy locking mechanism for secure cable fastening.
  • Suitable for industrial, electrical and telecom installations.

Metal Markers

TECHNICAL SPECIFICATIONS

  • Manufactured from Stainless Steel, Aluminium or Brass material.
  • Designed for permanent cable and equipment identification.
  • Available in embossed, engraved and punched marking types.
  • Corrosion resistant and weatherproof construction.
  • Standard marker sizes available for cable diameters from 10 mm to 100 mm.
  • Suitable for indoor and outdoor industrial applications.
  • High durability suitable for harsh environmental conditions.
  • Custom numbering and lettering options available.

Ferrules

TECHNICAL SPECIFICATIONS

  • Manufactured from electrolytic copper with tin plated finish.
  • Available in insulated and non-insulated variants.
  • Standard sizes available from 0.5 Sq.mm to 400 Sq.mm.
  • Designed for secure termination of stranded conductors.
  • Color coded insulation as per international standards.
  • Color coded insulation as per international standards.
  • Suitable for control panels, switchgear and electrical wiring applications.
  • Compatible with standard crimping tools.

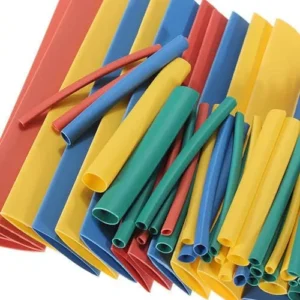

Heat Shrink Sleeves

TECHNICAL SPECIFICATIONS

  • Manufactured from cross linked polyolefin material.
  • Available in shrink ratios of 2:1, 3:1 and 4:1.
  • Standard sizes available from 2 mm to 120 mm diameter.
  • Flame retardant and heat resistant construction.
  • Provides insulation, sealing and mechanical protection.
  • Resistant to moisture, chemicals and UV exposure.
  • Available in multiple colors for cable identification.
  • Suitable for cable jointing, termination and insulation applications.

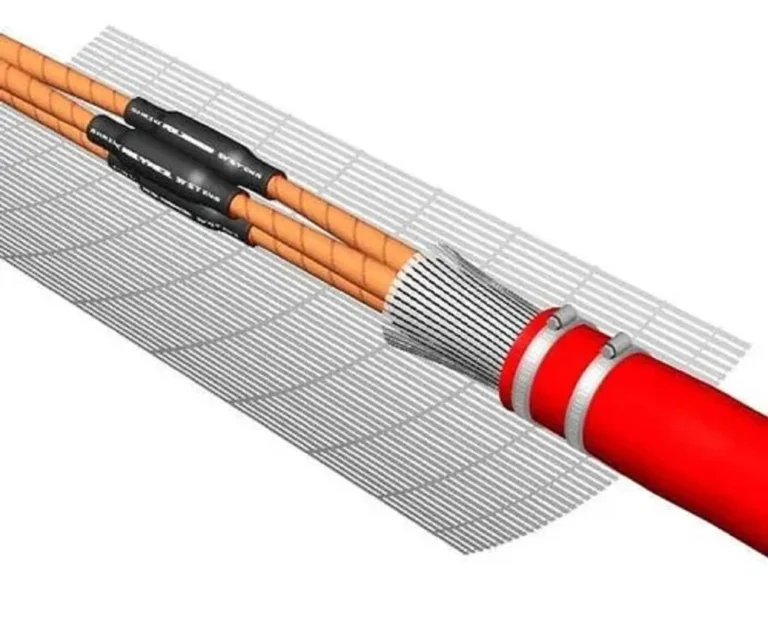

Jointing Kits

TECHNICAL SPECIFICATIONS

  • Available for LT and HT cable jointing applications.
  • Suitable for XLPE, PVC and PILC cable types.
  • Available in heat shrink and cold shrink technologies.
  • Standard voltage grades available from 1.1 kV to 33 kV.
  • Provides excellent insulation and moisture sealing performance.
  • High mechanical strength and thermal stability.
  • Suitable for underground and outdoor cable jointing installations.
  • Supplied with complete accessories and installation components.
