Lightning Protection System

Air Termination System

Conventional Lightning Arrester

TECHNICAL SPECIFICATIONS

  • Manufactured from high conductivity Copper, GI or Stainless Steel material.
  • Designed for direct interception of lightning strikes.
  • Standard rod diameters available from 12 mm to 25 mm.
  • Standard rod diameters available from 12 mm to 25 mm.
  • Hot dip galvanized coating thickness from 70 to 100 microns for GI models.
  • Suitable for industrial buildings, substations and commercial structures.
  • Designed as per IEC 62305 and IS/IEC lightning protection standards.

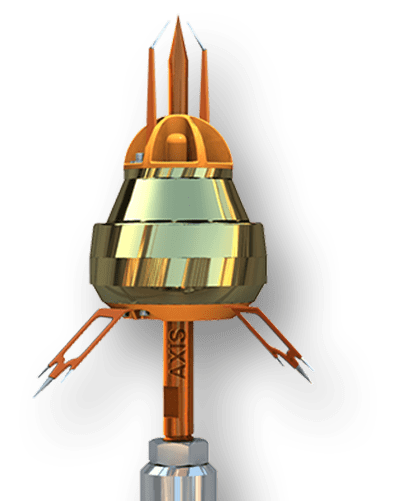

ESE Lightning Arrester (Early Streamer Emission)

TECHNICAL SPECIFICATIONS

  • Advanced Early Streamer Emission technology with wider protection radius.
  • Manufactured from Stainless Steel and Copper alloy material.
  • Protection radius available as per different ESE time ratings (ΔT).
  • Suitable for high-rise buildings, industries, telecom towers and solar plants.
  • High lightning current withstand capability.
  • Corrosion resistant and maintenance free construction.
  • Tested and manufactured as per NFC 17-102 standards.

Air Terminal Rods (Copper / GI / SS)

TECHNICAL SPECIFICATIONS

  • Available in Copper, Hot Dip Galvanized Iron and Stainless Steel material.
  • Standard diameters available from 12 mm to 25 mm.
  • Standard lengths available from 500 mm to 3000 mm.
  • Hot dip galvanized coating thickness from 70 to 100 microns for GI rods.
  • High corrosion resistance suitable for outdoor installation.
  • Suitable for lightning interception and rooftop protection systems.
  • Available with threaded base and mounting accessories.

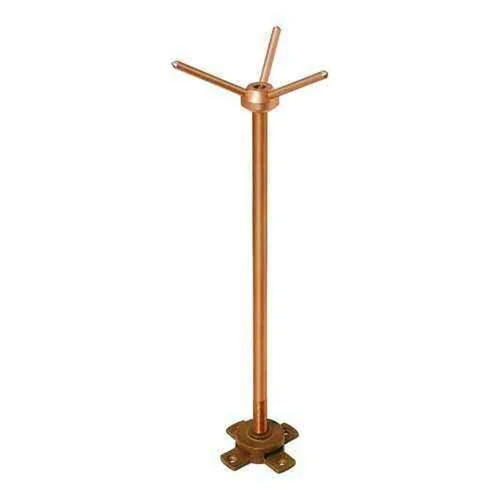

Multi-point Air Terminals

TECHNICAL SPECIFICATIONS

  • Manufactured from Copper, Aluminium or Stainless Steel material.
  • Manufactured from Copper, Aluminium or Stainless Steel material.
  • Available in 3-point, 4-point and multi-point configurations.
  • Corrosion resistant finish for long outdoor service life.
  • Suitable for rooftop equipment, telecom and industrial structures.
  • Easy installation with standard mounting arrangements.
  • Designed for effective protection against direct lightning strikes.

Mast for Lightning Arresters (GI / Hot Dip Galvanized)

TECHNICAL SPECIFICATIONS

  • Manufactured from heavy duty GI or Hot Dip Galvanized steel.
  • Standard mast heights available from 2 meter to 12 meter.
  • Pipe diameters available from 40 NB to 100 NB.
  • Hot dip galvanized coating thickness from 70 to 110 microns.
  • High wind load resistance suitable for outdoor installations.
  • Suitable for mounting conventional and ESE lightning arresters.
  • Available with base plate and guy wire support arrangements.

Base Plates & Mounting Accessories

TECHNICAL SPECIFICATIONS

  • Manufactured from Mild Steel, GI or Stainless Steel material.
  • Precision fabricated for secure mounting of air terminals and masts.
  • Hot dip galvanized coating thickness from 70 to 100 microns.
  • Available in multiple dimensions and hole configurations.
  • High mechanical strength for vibration and wind resistance.
  • Suitable for rooftop, wall and structural mounting applications.
  • Supplied with fasteners, clamps and fixing hardware options.

Down Conductor System (Current Path)

GI Strip (Hot Dip Galvanized)

TECHNICAL SPECIFICATIONS

  • Manufactured from high quality mild steel with hot dip galvanized coating.
  • Standard sizes available from 25x3 mm to 75x10 mm.
  • Standard lengths available up to 6 meter.
  • Hot dip galvanized coating thickness from 70 to 110 microns.
  • High mechanical strength with excellent corrosion resistance.
  • Suitable for lightning protection and earthing conductor systems.
  • Manufactured as per IS 2062 and IS 4759 standards.

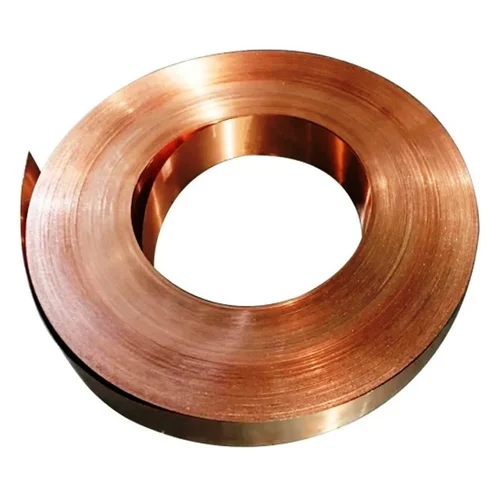

Copper Strip

TECHNICAL SPECIFICATIONS

  • Manufactured from high conductivity electrolytic grade copper.
  • All Standard sizes available.
  • High current carrying capacity with low electrical resistance.
  • Excellent corrosion resistance suitable for outdoor applications.
  • Available in hard and annealed temper conditions.
  • Suitable for lightning protection, grounding and bonding systems.
  • Long operational life with maintenance free performance.

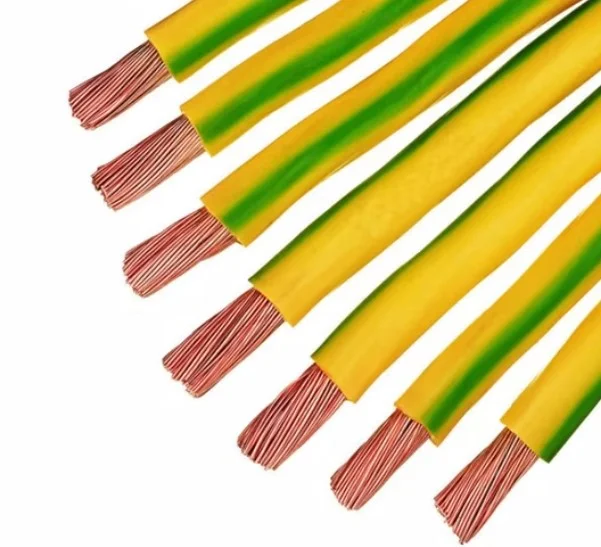

Earthing Flexible Cables

TECHNICAL SPECIFICATIONS

  • Manufactured using multi-stranded electrolytic grade copper conductor.
  • Available in bare copper and PVC insulated variants.
  • Standard sizes available from 16 Sq.mm to 240 Sq.mm.
  • High flexibility ensures easy routing and installation.
  • Low resistance path for effective fault current dissipation.
  • Suitable for equipment grounding and bonding applications.
  • Resistant to vibration and mechanical stress.

Aluminium Strip

TECHNICAL SPECIFICATIONS

  • Manufactured from high purity aluminium material.
  • Standard sizes available from 25x3 mm to 50x6 mm.
  • Lightweight construction with good electrical conductivity.
  • Corrosion resistant and suitable for outdoor installations.
  • Economical solution for grounding and lightning protection systems.
  • Available in coil and straight strip forms.
  • Suitable for industrial and commercial earthing applications.

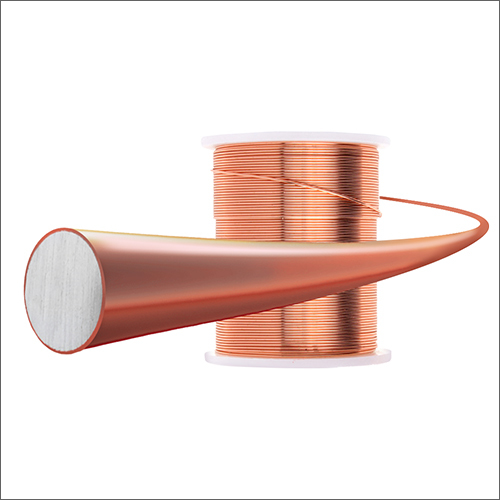

Copper Bonded Conductor

TECHNICAL SPECIFICATIONS

  • Manufactured with steel core molecularly bonded with high purity copper.
  • Copper bonding thickness available from 100 microns to 250 microns.
  • High tensile strength with excellent conductivity.
  • Superior corrosion resistance for underground applications.
  • Available in conductor and wire forms.
  • Suitable for substations, telecom towers and lightning protection systems.
  • Long service life under harsh environmental conditions.

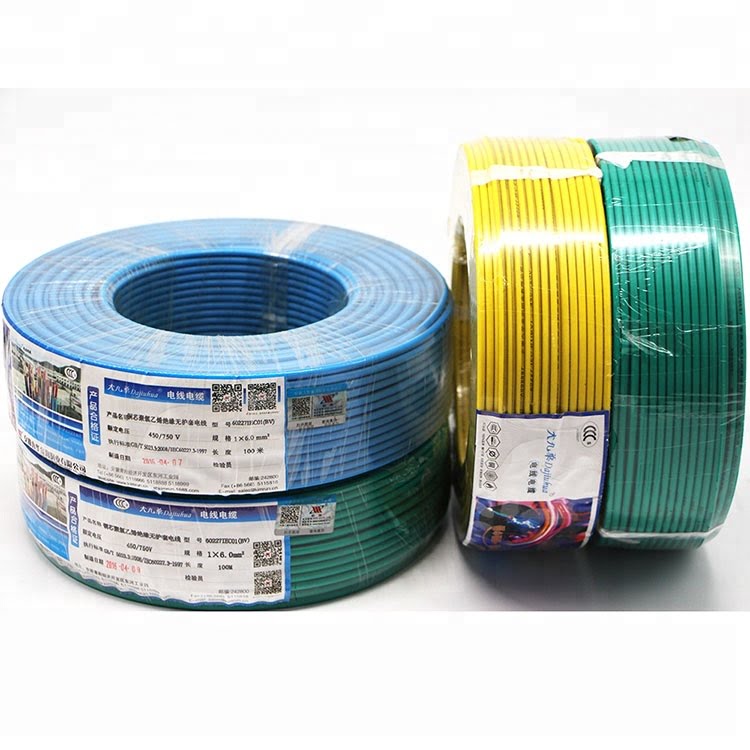

Down Conductor Wire (PVC Insulated / Bare)

TECHNICAL SPECIFICATIONS

  • Manufactured from high conductivity copper or GI conductor material.
  • Available in bare and PVC insulated variants.
  • Standard sizes available from 16 Sq.mm to 120 Sq.mm.
  • UV resistant and weatherproof insulation options available.
  • High current carrying capacity with low impedance path.
  • Suitable for concealed and exposed down conductor installations.
  • Supplied with fasteners, clamps and fixing hardware options.
  • Flexible and easy to install in industrial and commercial applications.

Fasteners & Saddles (for Routing)

TECHNICAL SPECIFICATIONS

  • Manufactured from GI, Brass, Aluminium or Stainless Steel material.
  • Available for strip, wire and conductor routing applications.
  • Hot dip galvanized coating thiess from 70 to 100 microns.
  • Corrosion resistant and weatherproof construction.
  • Corrosion resistant and weatherproof construction.
  • Available in multiple sizes suitable for different conductor dimensions.
  • Suitable for wall, rooftop and structural mounting applications.

Test Clamps / Disconnecting Clamps

TECHNICAL SPECIFICATIONS

  • Manufactured from Copper, Brass, GI or Stainless Steel material.
  • Designed for easy disconnection during earth resistance testing.
  • Designed for easy disconnection during earth resistance testing.
  • Corrosion resistant hardware suitable for outdoor applications.
  • Available in strip-to-strip and strip-to-wire configurations.
  • Heavy duty bolted construction for secure electrical continuity.
  • Suitable for lightning protection and earthing systems.

Equipotential Bonding System

Bonding Clamps (Pipe to Pipe / Structure)

TECHNICAL SPECIFICATIONS

  • Manufactured from Brass, Copper, GI or Stainless Steel material.
  • Designed for pipe-to-pipe, pipe-to-structure and strip bonding applications.
  • Available in multiple sizes suitable for ½ inch to 6 inch pipe diameters.
  • Corrosion resistant finish for indoor and outdoor installations.
  • Heavy duty bolted construction ensures secure electrical continuity.
  • Suitable for lightning protection and equipotential bonding systems.
  • Easy installation and maintenance free performance.

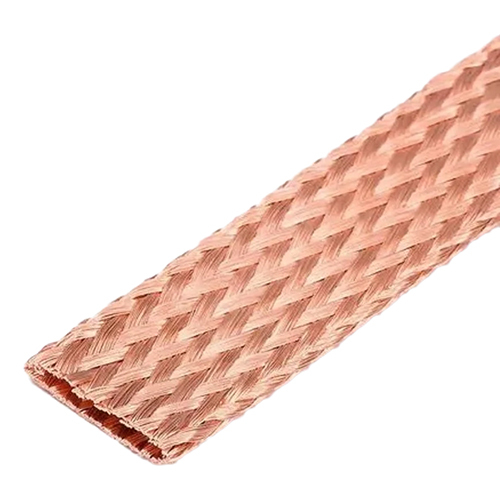

Flexible Copper Braids

TECHNICAL SPECIFICATIONS

  • Manufactured from high conductivity electrolytic grade tinned copper strands.
  • Available in standard sizes from 16 Sq.mm to 300 Sq.mm.
  • High flexibility suitable for vibration and movement applications.
  • Low resistance path for effective bonding and grounding.
  • Available in bare and PVC insulated variants.
  • Supplied with crimped copper lugs on request.
  • Suitable for panels, transformers, DG sets and electrical equipment bonding.

Cable Lugs (Copper / Aluminium)

TECHNICAL SPECIFICATIONS

  • Manufactured from high conductivity Copper and Aluminium material.
  • Available in long barrel and short barrel designs.
  • Standard sizes available from 1.5 Sq.mm to 1000 Sq.mm.
  • Tinned copper finish available for corrosion resistance.
  • Suitable for crimping and soldering applications.
  • Precision manufactured for secure cable termination.
  • Suitable for electrical panels, grounding and power cable connections.

Exothermic Welding Materials (Powder, Moulds)

TECHNICAL SPECIFICATIONS

  • Provides permanent molecular bonding connection with high conductivity.
  • Available for Copper-to-Copper, Copper-to-GI and cable-to-strip connections.
  • Graphite moulds available in reusable construction.
  • Welding powder available in multiple shot sizes for different conductor combinations.
  • No external power source required for welding process.
  • High mechanical strength and low resistance connection.
  • Suitable for substations, railways, telecom and lightning protection systems.

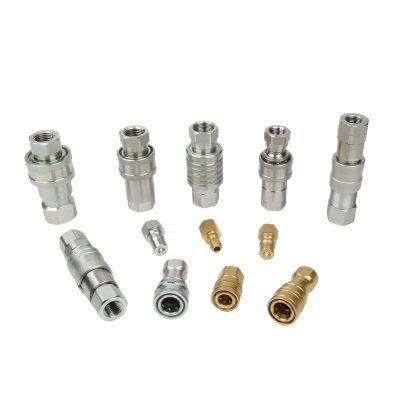

Connectors & Couplers

TECHNICAL SPECIFICATIONS

  • Manufactured from Copper, Brass, GI and Aluminium materials.
  • Available in straight, tee and cross connection configurations.
  • High conductivity with low resistance electrical continuity.
  • Corrosion resistant finish suitable for outdoor applications.
  • Suitable for conductor joining and extension applications.
  • Available for strip, wire and rod type conductors.
  • Heavy duty construction ensures reliable long term performance.
